Eye Bolts and Eye Nuts
Sling Force stocks Green Pin® lifting eyes, eye bolts, and eye nuts — permanent or semi-permanent lifting points designed to be fitted directly to machinery, equipment, and structural components for safe, repeatable lifting.
Working Load Limit range: Varies by thread size and type, from light-duty eye bolts through to heavy Grade 8 lifting points rated for substantial industrial loads.
Standard: Manufactured to DIN 580 (lifting eye bolts) and DIN 582 (lifting eye nuts), with UNC thread options available for equipment manufactured to US/imperial standards.
Common applications: Fixed lifting points on machinery, motors, pumps, and industrial equipment; installation and maintenance lifting; any application requiring a permanent, rated attachment point.
Types available: Standard DIN lifting eyes, Grade 8 heavy-duty lifting eyes, pivoting lifting eyes for angled loads, and UNC-threaded lifting eyes.
Available sizes: A full range of metric and UNC thread diameters to suit standard industrial mounting points.
Brand: Green Pin®.
Browse the full range below, or request a quotation for your required thread size and type.
Showing all 6 results
-
Green Pin® Lifting Eye DIN580-Length S/S-GR5 ALDINI
Price range: EGP 3335.18 through EGP 20331.22 Select options This product has multiple variants. The options may be chosen on the product page
Price range: EGP 3335.18 through EGP 20331.22The Green Pin® Lifting Eye DIN580-Length S/S-GR5 (ALDINI) is a Grade 5 stainless steel lifting eye bolt with DIN580 length dimensions, for corrosive…
Quick View -

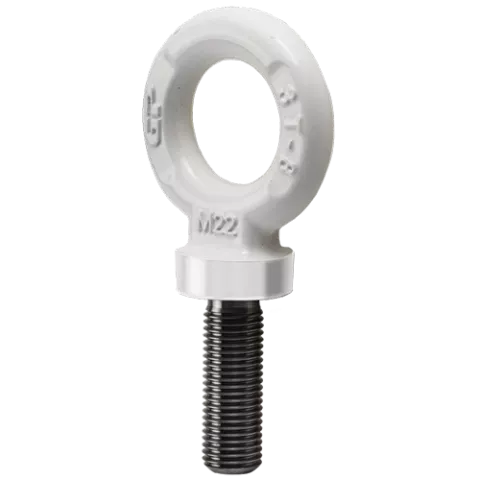

Green Pin® Lifting Eye GR8 AL
Price range: EGP 1199.74 through EGP 64253.59 Select options This product has multiple variants. The options may be chosen on the product page
Price range: EGP 1199.74 through EGP 64253.59The Green Pin® Lifting Eye GR8 (AL) is a Grade 8 lifting eye bolt for permanent or semi-permanent attachment points. Available in Working Load Limits from…
Quick View -

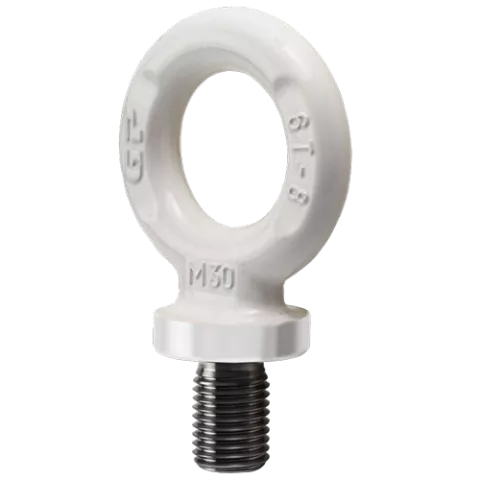

Green Pin® Lifting Eye Length As DIN580
Price range: EGP 60.00 through EGP 1250.00 Select options This product has multiple variants. The options may be chosen on the product pagePrice range: EGP 60.00 through EGP 1250.00Product details
-
Product code: ALDIN
-
Material: Alloy steel, Grade 8, quenched and tempered
-
Safety factor : MBL equals 5 x WLL
-
Finish: Painted white
-
Temp. range : -40°C up to +200°C
-
Certification: 2.1,2.2,3.1,MTCa,CE,MPlb
Quick View -
-
Green Pin® Lifting Eye S/S-GR5 ALI
Price range: EGP 2729.16 through EGP 17930.38 Select options This product has multiple variants. The options may be chosen on the product page
Price range: EGP 2729.16 through EGP 17930.38The Green Pin® Lifting Eye S/S-GR5 (ALI) is a Grade 5 stainless steel lifting eye bolt for corrosive marine environments. Available in Working Load Limits…
Quick View -
Green Pin® Lifting Eye – DIN580 & UNC
Price range: EGP 1562.29 through EGP 5878.61 Request a Quotation This product has multiple variants. The options may be chosen on the product page
Price range: EGP 1562.29 through EGP 5878.61- Material: Grade 10 alloy steel
- Safety factor: 4:1 (MBL = 4 × WLL)
- Rotation: 360° rotating, 0° to 90° pivot
- Temp. range: -40°C up to +200°C
- Certification: CE, DNV GL
- Thread types: DIN (metric) and UNC available
Quick View -
Green Pin® Small Lifting Eye OL
Price range: EGP 2236.68 through EGP 29217.74 Select options This product has multiple variants. The options may be chosen on the product page
Price range: EGP 2236.68 through EGP 29217.74The Green Pin® Small Lifting Eye (OL) is a compact Grade 8 lifting eye bolt for lighter-duty attachment points. Available in Working Load Limits from 0.5…
Quick View
